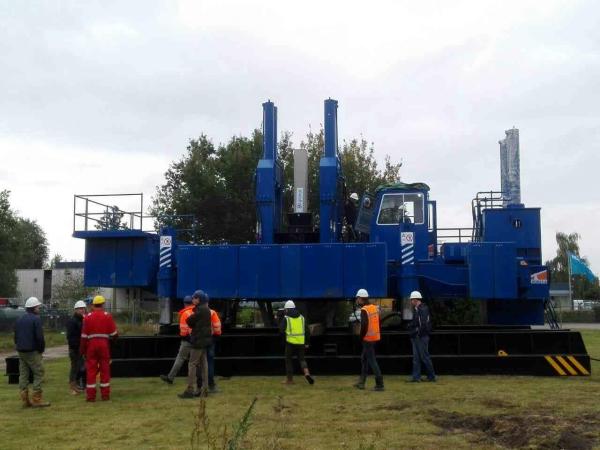

CE Standard Hydraulic Rotary Piling Rig For Soft Soil Pile Foundation

  • 1
  • 2

Brand Name : T-works

Model Number : 80t-1200t

Certification : CE,GOST

Place of Origin : HUNAN,CHINA

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 10 units per month

Delivery Time : 30-45 days

Packaging Details : Nude package by bulk vessel

Product Name : Hydraulic Press In Pile Driver

Max driving force : 800KN-12000KN

Rated Piling Pressure : 800KN-12000KN

Piling Stroke : 1.6-1.9m

Piling Speed : 6m/min-8.6m/min

Max Square Pile Size : ￠800mm

Max Circle Pile Size : □650mm

Contact Now

T-works ZYC Series Hydraulic Press In Pile Driver for Soft Soil Pile Foundationl

1, Description:

Hydraulic Press In Pile Driver machine using it's own weight and counter weight is the pile method of precast piles buried in the ballast section. This method save steel and concrete, reduce the cost of the project, the strength grade of concrete can be reduced 1 ~ 2 grade, Compared with the hammer method can save about 40 percent of the reinforcement and construction of no noise, no vibration, no pollution.

2, Applications:

  • Clay, soft soil, sand layer, etc.
  • Noise regulated urban area.
  • Vibration regulated areas where traditional methods may threaten the stability of existing structures.

3, Specifications:

Technical Parameter For Hydraulic Static Pile Driver
Parameter / Type / Model ZYC460 ZYC600 ZYC700 ZYC800 ZYC900 ZYC1000 ZYC1200
Rated piling pressure(KN) 4600 6000 7000 8000 9000 10000 12000
Piling speed(m/min) Fast 8.50 7.00 7.00 7.20 7.20 7.20 6.00
Low 1.60 1.40 1.00 1.10 1.10 1.00 1.00
Piling Stroke(m) 1.90 1.90 1.90 1.90 1.90 1.90 1.90
Pace(m) Longitudinal 3.60 3.60 3.60 3.60 3.60 3.60 3.60
Horizontal 0.70 0.70 0.70 0.70 0.70 0.70 0.60
Angle range(°) 11 11 11 11 11 11 11
Rise stroke (m) 1.1 1.2 1.2 1.2 1.2 1.2 1.2
Max square pile(mm) max □500 □650 □650 □650 □650 □650 □650
Max cirle pile(mm) max ￠600 ￠800 Φ800 ￠800 Φ800 Φ800 Φ800
Side piling space(mm) 1250 1380 1380 2800 1400 1600 1600
Cirle piling space(mm) 2500 2800 2800 2800 2800 3200 3200
Lifting weight(t) 16 16 25 25 25 25 50
Lifting pile's lengh(m) 16 15 17 17 17 17 17
Power(KW) Piling 111 111 111 141 141 165 165
Lifting 30 30 37 30 37 37 37
Main dimension(m) Lenth of work 13.00 13.80 14.00 14.70 14.80 16 16.8
Width of work 7.40 8.12 8.30 8.52 8.42 8.90 9.20
Transprorting
height		 3.25 3.30 3.30 3.30 3.40 3.40 3.40
Total weight(T)≥ 460 600 700 800 900 1000 1200


4, Basic Structure Of Hydraulic Press In Pile Driver

CE Standard Hydraulic Rotary Piling Rig For Soft Soil Pile Foundation

CE Standard Hydraulic Rotary Piling Rig For Soft Soil Pile Foundation
